Platform Single Instruments

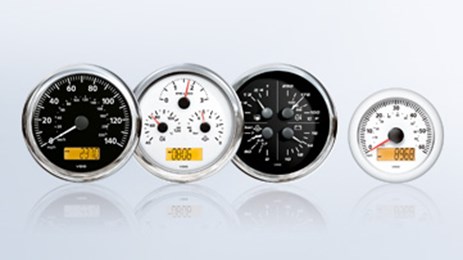

Our Viewline series.

Our Viewline series.

Our Viewline series.
Viewline.

Overview

World Wide Gauges is a standardized instrument platform for special vehicles and stationary machinery. With modular solutions in three housing variants and in two different illuminations (front - or back light) solution. Based on this instrument platform very cost effective customized solutions are available (dial design).

World Wide Gauges Cockpit International

  •  Panel installation
  • LC-display for speedo/tacho gauges
  • Front light technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Front light

World Wide Gauges Cockpit Vision

  • Panel installation
  • LC-display for speedo/tacho gauges
  • Full backlight technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Back light

Viewline

  • Flush and panel installation
  • Anti-fog and water resistance
  • LED illumination and warning lights
  • Clip-on bezels
  • LC-display
  • Full backlight technology

Benefits and Features

  • Front- and flush mountable
  • 52, 85 and 110mm gauges available
  • Combined 80 and 85mm installation diameter
  • Integrated telltales, up to 5 possible in 85 and 110mm gauges
  • Ex-changeable bezel

Technical Data

  • Big fixed segment LC-display in 85 and 110mm gauges
  • Operating voltage 12V and 24V DC
  • Operating temperature -30°C to +80°C
  • IP 67 protection class (front)
  • LED illumination
